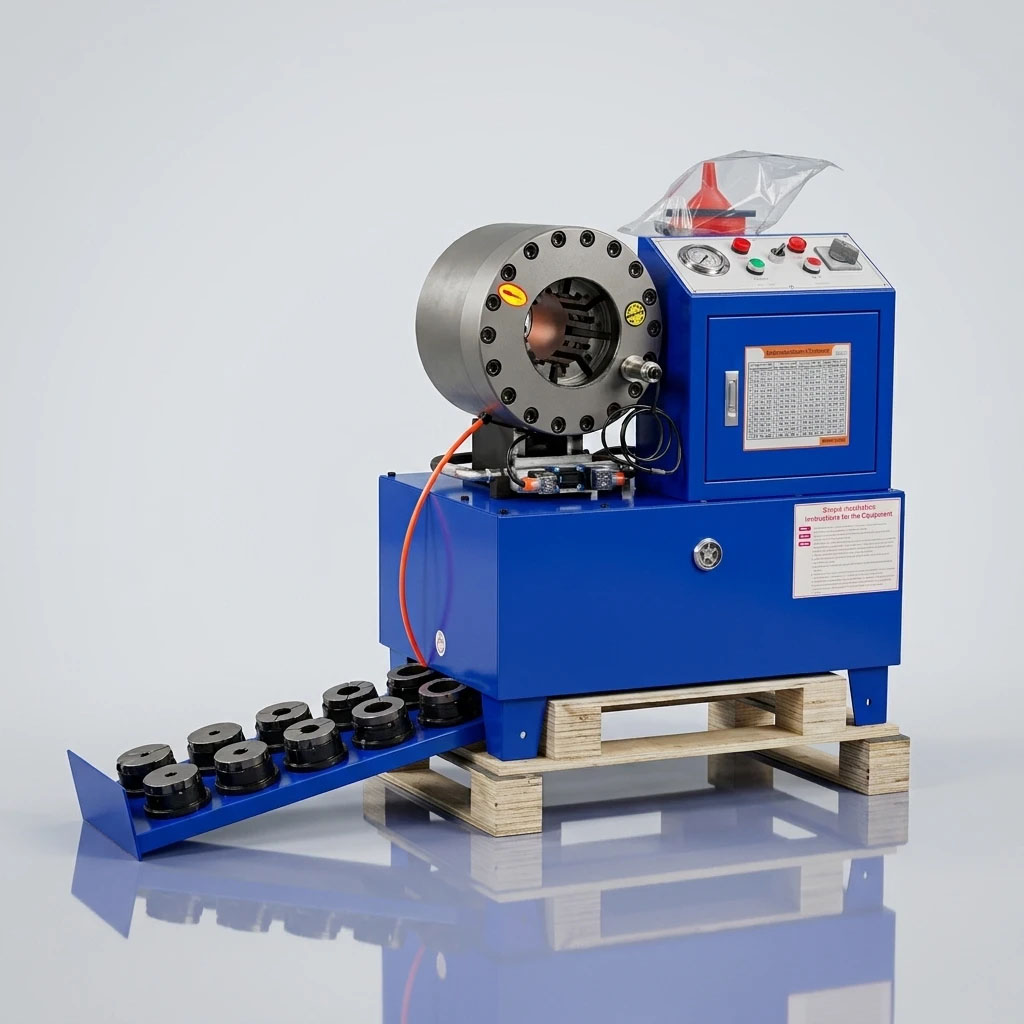

MS 51 Hydraulic Hose Crimping Machine
Brief Introduction:
MS-51 hose crimping machine is also famous for type DX68 or DX69.
This 51 hose crimper can be operate with two mode, automatic or manual, which supplies another crimping method for the users.
It is with standard 10 die sets from 15mm to 63mm, suitable for hydraulic hose from 1/4 inch to 2 inch making.

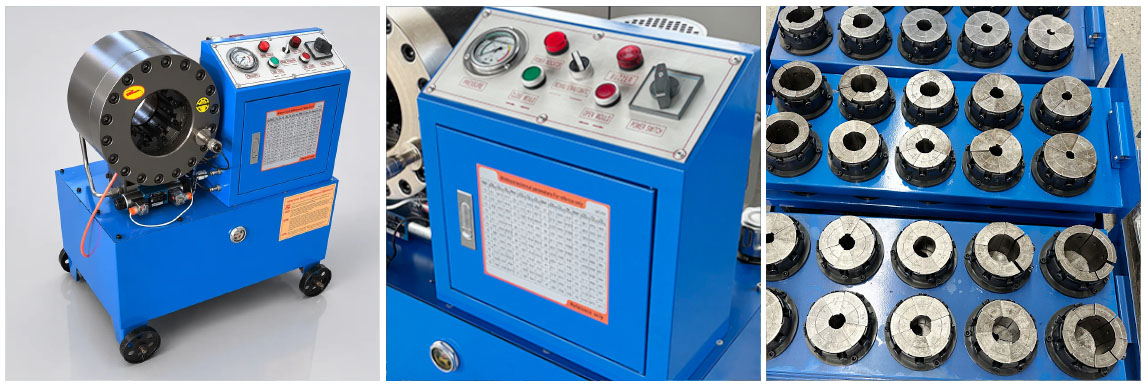

All the dies sets are stored inside of the machine body, to prevent die sets missing problems.
Simple design makes it easy to operate.
Advantages and Features:
+ Pressure Gauge To Show The System Pressure
+ Crimping Dial With High Accuracy And Easy Operate
+ Buzzer To Alert When Crimping To Diameter Settled
+ Modern Technology Double Function Foot Pedal
+ Clear Oil Level Ruler To Show Oil Conditions
+ Big Fluid And Stable Performance Hydraulic Pump
Technical Parameters
Model: MS 51
Type: Traditional Hose Crimping Machine
Hose Size: 1/4'' - 2''
Crimping Range: 15mm - 63mm
Accuracy: 0.01mm
Dies Sets: 10 sets
System Pressure: 31.5mpa
Crimping Force: 600 tonnage
Control: MS
Drive: Electric
Motor Power: 3kw / 4kw
Voltage: 110V 208V 220V 380V 415V
Frequency: 50hz 60hz
Weight: 245kgs
Length: 670mm
Width: 440mm
Height: 820mm
Dies Sets
-15 -19 -23 -26 -31 -36 -41 -47 -55 -63
