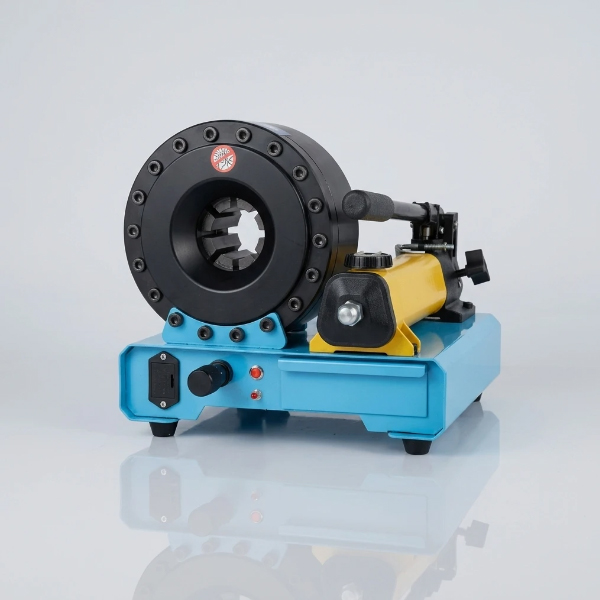

MS P16HP Manual Hydraulic Hose Crimping Machine
MS P16HP hydraulic hose crimping machine is suitable for high pressure hose from 6mm (1/4 inch) to 25mm (1 inch) with 2 wires braided. It is with 7 standard die sets range from 14mm to 35mm diameter with length of 64mm. It is a portable hose crimper with light weight, so it can be placed on any plate form that you have. The press machine can operate without electricity supply, so can repair the hydraulic hose on site.
Main Features:
- Light weight with stable performance;
- High quality hand pump high productivity;
- Die sets with high hardness;
- Crimping vernier with top accuracy.
Technical Parameters
| Model | MS P16HP |
| Type | Manual Hose Crimping Machine |
| Hose Size | 1/4"-1" |
| Crimping Diameter | 14mm to 45mm |
Crimping Force | 150 tonage |
| Die Sets | 7 Sets |
| Max. Opening | 18mm |
| Control | MS |
| Accuracy | 0.01mm |
| Pump | Manual |
| Drive | Hand Pump |
| Tank Volume | 328mL |
| Length | 370mm |
| Width | 305mm |
| Height | 270mm |
| Weight | 26.5kgs |
Die Sets
- 14 - 16 - 19 - 23 - 27 - 31 - 35
