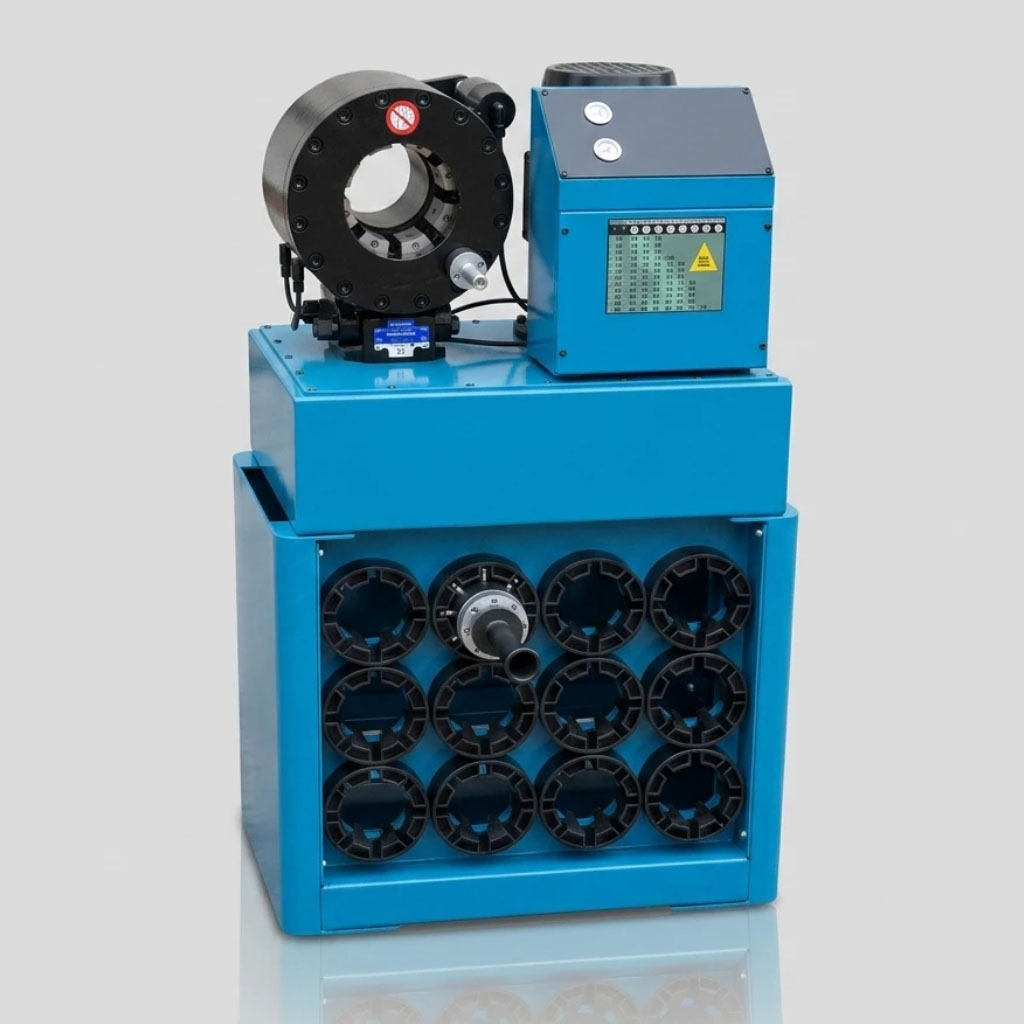

MS E38 Hose Crimping Machine with Quick Change Tool
MS E38 hydraulic hose crimping machine is designed for pressing rubber hose from 1/4 inch to 2 inch.
Updated model is with quick change for die sets.
This user-friendly upgrade eliminates the need for complex auxiliary tools and tedious disassembly steps, drastically shortening die replacement time and greatly improving overall working efficiency for batch hose crimping operations.
Equipped with a professional quick-release pin structure, the die sets can be swapped in minutes, allowing operators to seamlessly switch between different hose specifications without prolonged downtime.
Advantages
- Easy and safe hands-free operation
- Ultra fast die replacement design
- Wide processing range with high crimping precision
- Compact structure and low maintenance cost
Technical Parameters
Model: MS E38
Type: Electric Hose Crimping Machine
Hose Size: 1/4'' - 2''
Crimping Range: 14mm - 63mm
Accuracy: 0.01mm
Dies Sets: 10 sets
System Pressure: 31.5mpa
Crimping Force: 600 tonnage
Control: MS
Drive: Electric
Motor Power: 3kw / 4kw
Voltage: 110V 208V 220V 380V 415V
Frequency: 50hz 60hz
Weight: 192kgs
Length: 600mm
Width: 450mm
Height: 560mm

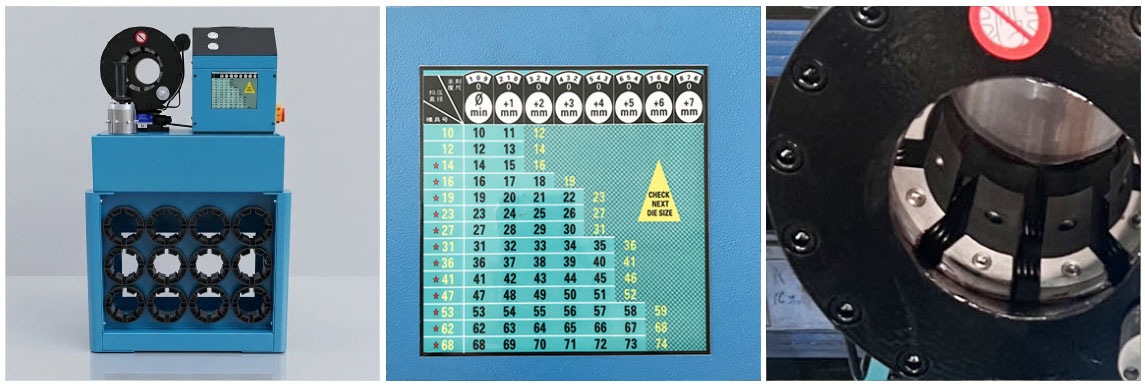

Die Sets
-14 -16 -20 -26 -30 -38 -46 -54 -64
