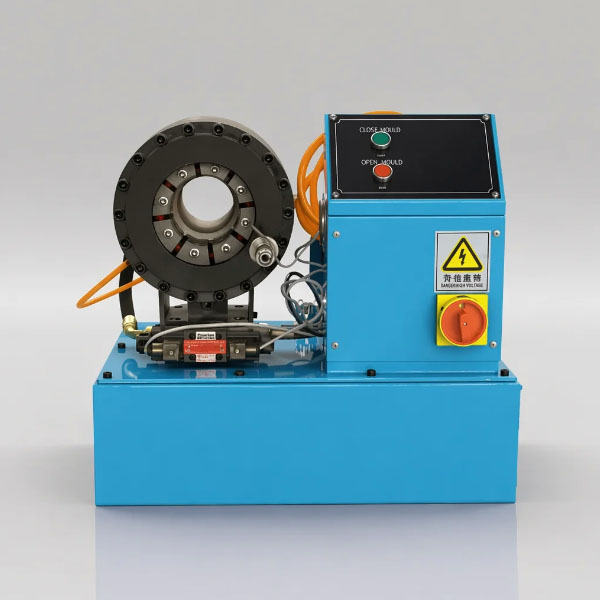

MS P20 Hydraulic Hose Crimping Machine
High-Performance Hydraulic Hose Crimping Machine (Up to 1 1/2")
This hydraulic hose crimping machine is engineered for precision, durability, and effortless operation, making it the ideal choice for high-volume workshops and industrial maintenance teams. Designed to handle both standard and high-pressure applications, this machine delivers consistent, factory-quality crimps every single time.
Key Specifications & Features
Maximum Capacity:
Accommodates hydraulic hoses from small diameter lines up to 1 1/2-inch high-pressure spiral hoses.
Die Sets Included:
Comes complete with 8 standard die sets, allowing you to easily switch between sizes and cover a wide range of standard hose dimensions right out of the box.
Robust Crimping Force:
Driven by a high-efficiency hydraulic system that provides the massive tonnage required to cleanly compress heavy-duty steel wire reinforcement.
Technical Parameter
| Model | MS P20 |
| Type | Electric Hose Crimping Machine |
| Hose Size | 1/4'' - 1 1/2'' |
| Crimping Diameter | 15mm - 61mm |
| Crimping Force | 450 tonnage |
| Die Sets | 8 sets |
| Max. Opening | 25mm |
| Control | MS |
| Accuracy | 0.01mm |
System Pressure
| 31.5mpa |
| Motor Power | 3kw |
| Tank Volume | 38.7L |
Weight
| 180kgs |
| Length | 598mm |
Width
| 441mm |
| Height | 583mm |
Die Sets
-15 -19 -23 -26 -31 -36 -41 -47
Hose Size: 1/4'' - 1 1/2''
Die Sets: 8 sets
Voltage: 110V, 208V, 220V, 240V, 380V, 415V
