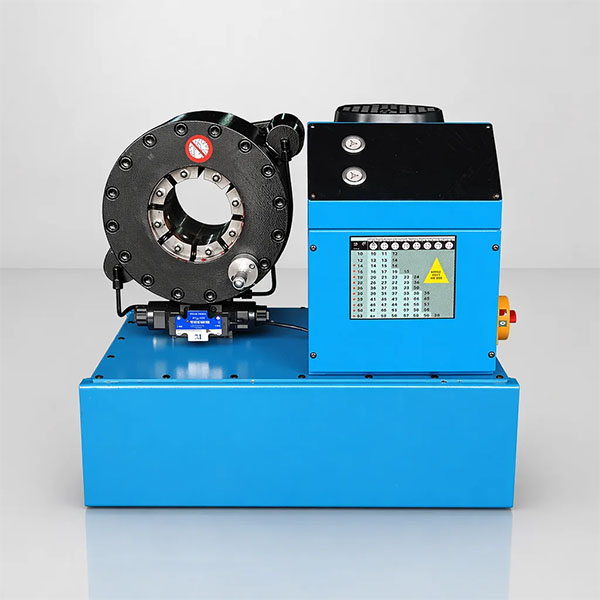

MS E38 High Pressure Hydraulic Hose Crimping Machine
Description:
It is a hose crimping machine with crimping range from 14mm to 64mm.
This machine is designed for crimping high-pressure steel wire hoses, making it ideal for heavy-duty hydraulic applications.
Its robust construction ensures long-term durability and consistent performance under demanding conditions.
The intuitive control panel allows operators to easily set parameters, minimizing setup time and reducing the risk of errors.
Equipped with advanced safety features, it protects users during operation while maintaining high precision.
This balance of power, ease of use, and reliability makes the MS E38 an essential tool for workshops aiming to enhance productivity and deliver superior quality hose assemblies efficiently.
Technical Parameters
| Model | MS E38 |
| Type | Electric Hose Crimper |
| Hose Size | 1/4'' - 2'' |
| Crimping Diameter | 14mm - 64mm |
| Crimping Force | 600 tonnage |
| Die Sets | 10 sets |
| Max. Opening | 25mm |
| Control | MS |
| Accuracy | 0.01mm |
Pump
| Hydraulic |
| Motor Power | 3kw / 4kw |
| Tank Volume | 46.8L |
Weight
| 190kgs |
| Length | 600mm |
| Width | 450mm |
| Height | 568mm |
Die Sets
-14 -16 -20 -26 -30 -38 -46 -54 -64
Hose Size: 1/4'' - 2''
Die Sets: 10 sets
Voltage: 110V, 208V, 220V, 380V, 415V
