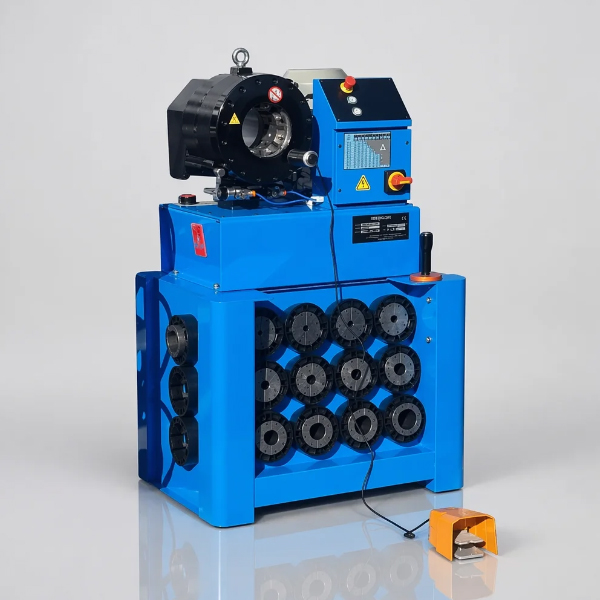

P32 Hydraulic Hose Crimping Machine
Brief Introduction:
MS P32 is designed based on traditional series hose crimper. It is with 13 standard die sets, suitable for hydraulic high pressure high tensile hose from 1/4 Inch to 2 1/2 Inch pressing.
It is mid-range in terms of power, but compact from the point of view of space requirements.
MS P32 crimping machine provide 6500 kN crimping force in a highly compact, ergonomical design.
It is ideally suited for single piece production in machine shops, repair workshops etc.
MS P32 is a table-top machine, which can be mounted on a QC Tool Base.
Up to 16 die sets can be stored in a base for operator convenience.
Technical Parameters
| Model: | MS P32 |
| Type: | Electric Hose Crimping Machine |
| Hose Size: | 1/4'' - 2 1/2'' |
| Crimping Range: | 14mm - 87mm |
| Accuracy: | 0.01mm |
| Dies Sets: | 13 sets |
| System Pressure: | 31.5mpa |
| Crimping Force: | 650 tonnage |
| Control: | MS |
| Drive: | Electric |
| Motor Power: | 4kw |
| Voltage: | 110V 208V 220V 380V 415V |
| Frequency: | 50hz 60hz |
| Weight: | 315.5kgs |
| Length: | 648mm |
| Width: | 553mm |
| Height: | 1210mm |
Dies Sets
-14 -16 -19 -22 -26 -30 -34 -39 -45 -51 -57 -63 -69
Note
Specail die sets with different shape, length and diameter is available.
-4 -6 -8 -10 -12 -74 -78
