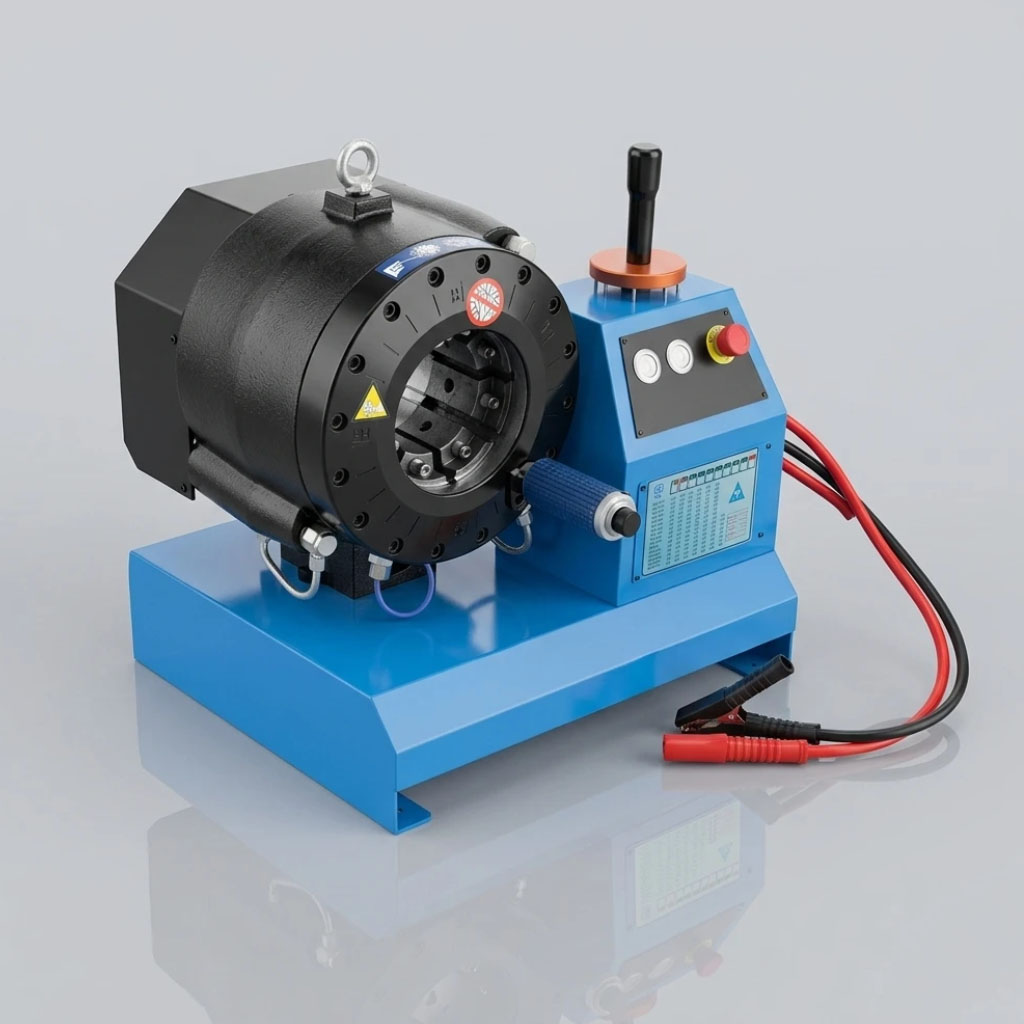

MS P32CS Hydraulic Hose Crimping Machine for Mobile Van
Description
MS P32CS series of crimping machines is famous for its movable ability.
This hose crimper can work with car battery 12V or 24V power. It is simple and straightforward in construction, easy to operate, and can easily be carried to where they are needed.

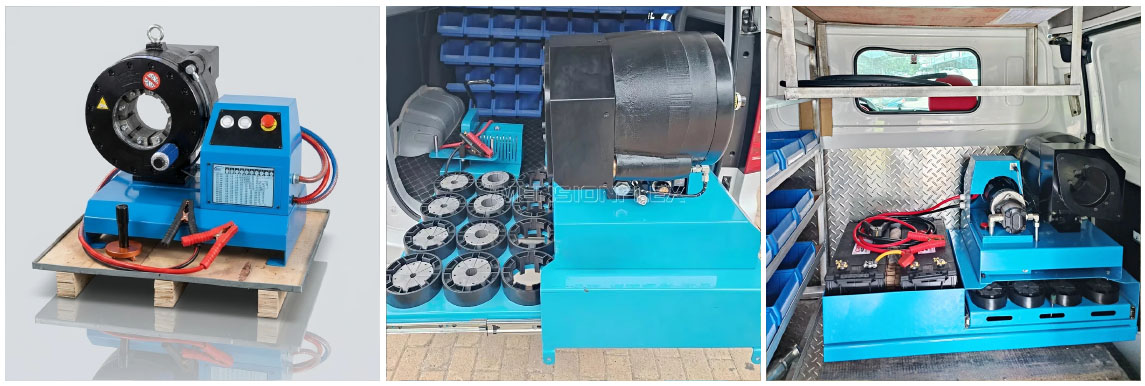

The most popular applications for these portable hose crimping machines are in repair shops and in industrial maintenance units.
It is with 13 dies sets, can crimp hydraulic high pressure hose up to 2 inch 4SP and even 6SP stainless steel braided hoses.
Advantages and Features:
+ Chrome 40 Steel Structure Material for The Hydraulic Cylinder
+ Cr12Mov Steel for Die Sets with High Hardness
+ Oil Seal By Nok, Japan Or Dingzing, China
+ Finn Power Same Crimping Dial with High Accuracy
+ Safe Design with International CE Quality
+ Simple Structure with Less Failure
+ Increasing Work Efficiency and Reduces Operational Cost
+ Provide Advantage to Modernized Management
+ Pressure Gauge For Clear System Pressure Show
Technical Parameters
Model: MS P32CS
Type: Mobile Van Hose Crimping Machine
Hose Size: 1/4'' - 2 1/2''
Crimping Range: 14mm - 87mm
Accuracy: 0.01mm
Dies Sets: 13 sets
System Pressure: 31.5mpa
Crimping Force: 650 tonnage
Control: MS
Drive: Electric
Motor Power: 3kw / 4kw
Voltage: 12V 24V
Frequency: 50hz
Weight: 256kgs
Length: 650mm
Width: 550mm
Height: 600mm
Dies Sets
-14 -16 -19 -22 -26 -30 -34 -39 -45 -51 -57 -63 -69
